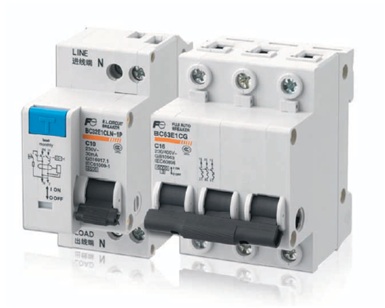

BC系列小型(漏电)断路器
●本系列小型断路器，是以保护住宅或类似设施中的配电设备，免受过电流破坏为目
●过载保护特性中，备有保护照明电气系统用的具有5-10In瞬时脱扣特性的C型特性，
和保护普通电气系统得电线用的具有10-14In瞬时脱扣特性的D型特性
●小型断路器和漏电脱扣器相组合的漏电断路器产品系列也相当齐全
●由于可以安装辅助开关，报警开关，分励脱扣器等功能性元件，因此亦可对电气系统进行监视和控制
●额定电流：1~125A
| 型 号 | 极数 | 額定电流 | 额定分断容量 | 动作特性 |
| ( A ) | AC230/400V（kA） | |||
| BC63H2CG-1P001 | 1P | 1 | 10kA | C |
| BC63H2CG-1P002 | 1P | 2 | 10kA | C |
| BC63H2CG-1P003 | 1P | 3 | 10kA | C |
| BC63H2CG-1P004 | 1P | 4 | 10kA | C |
| BC63H2CG-1P005 | 1P | 5 | 10kA | C |
| BC63H2CG-1P006 | 1P | 6 | 10kA | C |
| BC63H2CG-1P010 | 1P | 10 | 10kA | C |
| BC63H2CG-1P016 | 1P | 16 | 10kA | C |
| BC63H2CG-1P020 | 1P | 20 | 10kA | C |
| BC63H2CG-1P025 | 1P | 25 | 10kA | C |
| BC63H2CG-1P032 | 1P | 32 | 10kA | C |
| BC63H2CG-1P040 | 1P | 40 | 10kA | C |
| BC63H2CG-1P050 | 1P | 50 | 10kA | C |
| BC63H2CG-1P063 | 1P | 63 | 10kA | C |
| BC63H2DG-1P001 | 1P | 1 | 10kA | D |
| BC63H2DG-1P002 | 1P | 2 | 10kA | D |
| BC63H2DG-1P003 | 1P | 3 | 10kA | D |
| BC63H2DG-1P004 | 1P | 4 | 10kA | D |
| BC63H2DG-1P005 | 1P | 5 | 10kA | D |
| BC63H2DG-1P006 | 1P | 6 | 10kA | D |
| BC63H2DG-1P010 | 1P | 10 | 10kA | D |
| BC63H2DG-1P016 | 1P | 16 | 10kA | D |
| BC63H2DG-1P020 | 1P | 20 | 10kA | D |
| BC63H2DG-1P025 | 1P | 25 | 10kA | D |
| BC63H2DG-1P032 | 1P | 32 | 10kA | D |
| BC63H2DG-1P040 | 1P | 40 | 10kA | D |
| BC63H2DG-1P050 | 1P | 50 | 10kA | D |
| BC63H2DG-1P063 | 1P | 63 | 10kA | D |
| BC63H2CG-2P001 | 2P | 1 | 10kA | C |
| BC63H2CG-2P002 | 2P | 2 | 10kA | C |
| BC63H2CG-2P003 | 2P | 3 | 10kA | C |
| BC63H2CG-2P004 | 2P | 4 | 10kA | C |
| BC63H2CG-2P005 | 2P | 5 | 10kA | C |
| BC63H2CG-2P006 | 2P | 6 | 10kA | C |
| BC63H2CG-2P010 | 2P | 10 | 10kA | C |
| BC63H2CG-2P016 | 2P | 16 | 10kA | C |
| BC63H2CG-2P020 | 2P | 20 | 10kA | C |
| BC63H2CG-2P025 | 2P | 25 | 10kA | C |
| BC63H2CG-2P032 | 2P | 32 | 10kA | C |
| BC63H2CG-2P040 | 2P | 40 | 10kA | C |
| BC63H2CG-2P050 | 2P | 50 | 10kA | C |
| BC63H2CG-2P063 | 2P | 63 | 10kA | C |
| BC63H2DG-2P001 | 2P | 1 | 10kA | D |
| BC63H2DG-2P002 | 2P | 2 | 10kA | D |
| BC63H2DG-2P003 | 2P | 3 | 10kA | D |
| BC63H2DG-2P004 | 2P | 4 | 10kA | D |
| BC63H2DG-2P005 | 2P | 5 | 10kA | D |
| BC63H2DG-2P006 | 2P | 6 | 10kA | D |
| BC63H2DG-2P010 | 2P | 10 | 10kA | D |
| BC63H2DG-2P016 | 2P | 16 | 10kA | D |
| BC63H2DG-2P020 | 2P | 20 | 10kA | D |
| BC63H2DG-2P025 | 2P | 25 | 10kA | D |
| BC63H2DG-2P032 | 2P | 32 | 10kA | D |
| BC63H2DG-2P040 | 2P | 40 | 10kA | D |
| BC63H2DG-2P050 | 2P | 50 | 10kA | D |
| BC63H2DG-2P063 | 2P | 63 | 10kA | D |
| BC63H2CG-3P001 | 3P | 1 | 10kA | C |
| BC63H2CG-3P002 | 3P | 2 | 10kA | C |
| BC63H2CG-3P003 | 3P | 3 | 10kA | C |
| BC63H2CG-3P004 | 3P | 4 | 10kA | C |
| BC63H2CG-3P005 | 3P | 5 | 10kA | C |
| BC63H2CG-3P006 | 3P | 6 | 10kA | C |
| BC63H2CG-3P010 | 3P | 10 | 10kA | C |
| BC63H2CG-3P016 | 3P | 16 | 10kA | C |
| BC63H2CG-3P020 | 3P | 20 | 10kA | C |
| BC63H2CG-3P025 | 3P | 25 | 10kA | C |
| BC63H2CG-3P032 | 3P | 32 | 10kA | C |
| BC63H2CG-3P040 | 3P | 40 | 10kA | C |
| BC63H2CG-3P050 | 3P | 50 | 10kA | C |
| BC63H2CG-3P063 | 3P | 63 | 10kA | C |
| BC63H2DG-3P001 | 3P | 1 | 10kA | D |
| BC63H2DG-3P002 | 3P | 2 | 10kA | D |
| BC63H2DG-3P003 | 3P | 3 | 10kA | D |
| BC63H2DG-3P004 | 3P | 4 | 10kA | D |
| BC63H2DG-3P005 | 3P | 5 | 10kA | D |
| BC63H2DG-3P006 | 3P | 6 | 10kA | D |
| BC63H2DG-3P010 | 3P | 10 | 10kA | D |
| BC63H2DG-3P016 | 3P | 16 | 10kA | D |
| BC63H2DG-3P020 | 3P | 20 | 10kA | D |
| BC63H2DG-3P025 | 3P | 25 | 10kA | D |
| BC63H2DG-3P032 | 3P | 32 | 10kA | D |
| BC63H2DG-3P040 | 3P | 40 | 10kA | D |
| BC63H2DG-3P050 | 3P | 50 | 10kA | D |
| BC63H2DG-3P063 | 3P | 63 | 10kA | D |
| BC63H2CG-4P001 | 4P | 1 | 10kA | C |
| BC63H2CG-4P002 | 4P | 2 | 10kA | C |
| BC63H2CG-4P003 | 4P | 3 | 10kA | C |
| BC63H2CG-4P004 | 4P | 4 | 10kA | C |
| BC63H2CG-4P005 | 4P | 5 | 10kA | C |
| BC63H2CG-4P006 | 4P | 6 | 10kA | C |
| BC63H2CG-4P010 | 4P | 10 | 10kA | C |
| BC63H2CG-4P016 | 4P | 16 | 10kA | C |
| BC63H2CG-4P020 | 4P | 20 | 10kA | C |
| BC63H2CG-4P025 | 4P | 25 | 10kA | C |
| BC63H2CG-4P032 | 4P | 32 | 10kA | C |
| BC63H2CG-4P040 | 4P | 40 | 10kA | C |
| BC63H2CG-4P050 | 4P | 50 | 10kA | C |
| BC63H2CG-4P063 | 4P | 63 | 10kA | C |
| BC63H2DG-4P001 | 4P | 1 | 10kA | D |
| BC63H2DG-4P002 | 4P | 2 | 10kA | D |
| BC63H2DG-4P003 | 4P | 3 | 10kA | D |
| BC63H2DG-4P004 | 4P | 4 | 10kA | D |
| BC63H2DG-4P005 | 4P | 5 | 10kA | D |
| BC63H2DG-4P006 | 4P | 6 | 10kA | D |
| BC63H2DG-4P010 | 4P | 10 | 10kA | D |
| BC63H2DG-4P016 | 4P | 16 | 10kA | D |
| BC63H2DG-4P020 | 4P | 20 | 10kA | D |
| BC63H2DG-4P025 | 4P | 25 | 10kA | D |
| BC63H2DG-4P032 | 4P | 32 | 10kA | D |
| BC63H2DG-4P040 | 4P | 40 | 10kA | D |
| BC63H2DG-4P050 | 4P | 50 | 10kA | D |
| BC63H2DG-4P063 | 4P | 63 | 10kA | D |
| 7.10 BC63系列小型漏电断路器(相线+中性线)(10kA) | ||||
| 型 号 | 极数 | 額定电流 | 额定分断容量 | 动作特性 |
| ( A ) | AC230/400V（kA） | |||
| BC63H2CL-1N001B | 1P+N | 1 | 10kA | C |
| BC63H2CL-1N002B | 1P+N | 2 | 10kA | C |
| BC63H2CL-1N003B | 1P+N | 3 | 10kA | C |
| BC63H2CL-1N004B | 1P+N | 4 | 10kA | C |
| BC63H2CL-1N006B | 1P+N | 6 | 10kA | C |
| BC63H2CL-1N010B | 1P+N | 10 | 10kA | C |
| BC63H2CL-1N016B | 1P+N | 16 | 10kA | C |
| BC63H2CL-1N020B | 1P+N | 20 | 10kA | C |
| BC63H2CL-1N025B | 1P+N | 25 | 10kA | C |
| BC63H2CL-1N032B | 1P+N | 32 | 10kA | C |
| BC63H2CL-1N040B | 1P+N | 40 | 10kA | C |
| BC63H2CL-1N050B | 1P+N | 50 | 10kA | C |
| BC63H2CL-1N063B | 1P+N | 63 | 10kA | C |
| BC63H2DL-1N001B | 1P+N | 1 | 10kA | D |
| BC63H2DL-1N002B | 1P+N | 2 | 10kA | D |
| BC63H2DL-1N003B | 1P+N | 3 | 10kA | D |
| BC63H2DL-1N004B | 1P+N | 4 | 10kA | D |
| BC63H2DL-1N006B | 1P+N | 6 | 10kA | D |
| BC63H2DL-1N010B | 1P+N | 10 | 10kA | D |
| BC63H2DL-1N016B | 1P+N | 16 | 10kA | D |
| BC63H2DL-1N020B | 1P+N | 20 | 10kA | D |
| BC63H2DL-1N025B | 1P+N | 25 | 10kA | D |
| BC63H2DL-1N032B | 1P+N | 32 | 10kA | D |
| BC63H2DL-1N040B | 1P+N | 40 | 10kA | D |
| BC63H2DL-1N050B | 1P+N | 50 | 10kA | D |
| BC63H2DL-1N063B | 1P+N | 63 | 10kA | D |
| BC63H2CL-2P001B | 2P | 1 | 10kA | C |
| BC63H2CL-2P002B | 2P | 2 | 10kA | C |
| BC63H2CL-2P003B | 2P | 3 | 10kA | C |
| BC63H2CL-2P004B | 2P | 4 | 10kA | C |
| BC63H2CL-2P006B | 2P | 6 | 10kA | C |
| BC63H2CL-2P010B | 2P | 10 | 10kA | C |
| BC63H2CL-2P016B | 2P | 16 | 10kA | C |
| BC63H2CL-2P020B | 2P | 20 | 10kA | C |
| BC63H2CL-2P025B | 2P | 25 | 10kA | C |
| BC63H2CL-2P032B | 2P | 32 | 10kA | C |
| BC63H2CL-2P040B | 2P | 40 | 10kA | C |
| BC63H2CL-2P050B | 2P | 50 | 10kA | C |
| BC63H2CL-2P063B | 2P | 63 | 10kA | C |
| BC63H2DL-2P001B | 2P | 1 | 10kA | D |
| BC63H2DL-2P002B | 2P | 2 | 10kA | D |
| BC63H2DL-2P003B | 2P | 3 | 10kA | D |
| BC63H2DL-2P004B | 2P | 4 | 10kA | D |
| BC63H2DL-2P006B | 2P | 6 | 10kA | D |
| BC63H2DL-2P010B | 2P | 10 | 10kA | D |
| BC63H2DL-2P016B | 2P | 16 | 10kA | D |
| BC63H2DL-2P020B | 2P | 20 | 10kA | D |
| BC63H2DL-2P025B | 2P | 25 | 10kA | D |
| BC63H2DL-2P032B | 2P | 32 | 10kA | D |
| BC63H2DL-2P040B | 2P | 40 | 10kA | D |
| BC63H2DL-2P050B | 2P | 50 | 10kA | D |
| BC63H2DL-2P063B | 2P | 63 | 10kA | D |
| BC63H2CL-3P006B | 3P | 1 | 10kA | C |
| BC63H2CL-3P001B | 3P | 2 | 10kA | C |
| BC63H2CL-3P002B | 3P | 3 | 10kA | C |
| BC63H2CL-3P003B | 3P | 4 | 10kA | C |
| BC63H2CL-3P005B | 3P | 6 | 10kA | C |
| BC63H2CL-3P010B | 3P | 10 | 10kA | C |
| BC63H2CL-3P016B | 3P | 16 | 10kA | C |
| BC63H2CL-3P020B | 3P | 20 | 10kA | C |
| BC63H2CL-3P025B | 3P | 25 | 10kA | C |
| BC63H2CL-3P032B | 3P | 32 | 10kA | C |
| BC63H2CL-3P040B | 3P | 40 | 10kA | C |
| BC63H2CL-3P050B | 3P | 50 | 10kA | C |
| BC63H2CL-3P063B | 3P | 63 | 10kA | C |
| BC63H2DL-3P006B | 3P | 1 | 10kA | D |
| BC63H2DL-3P001B | 3P | 2 | 10kA | D |
| BC63H2DL-3P002B | 3P | 3 | 10kA | D |
| BC63H2DL-3P003B | 3P | 4 | 10kA | D |
| BC63H2DL-3P005B | 3P | 6 | 10kA | D |
| BC63H2DL-3P010B | 3P | 10 | 10kA | D |
| BC63H2DL-3P016B | 3P | 16 | 10kA | D |
| BC63H2DL-3P020B | 3P | 20 | 10kA | D |
| BC63H2DL-3P025B | 3P | 25 | 10kA | D |
| BC63H2DL-3P032B | 3P | 32 | 10kA | D |
| BC63H2DL-3P040B | 3P | 40 | 10kA | D |
| BC63H2DL-3P050B | 3P | 50 | 10kA | D |
| BC63H2DL-3P063B | 3P | 63 | 10kA | D |
| BC63H2CL-3N001B | 3P+N | 1 | 10kA | C |
| BC63H2CL-3N002B | 3P+N | 2 | 10kA | C |
| BC63H2CL-3N003B | 3P+N | 3 | 10kA | C |
| BC63H2CL-3N004B | 3P+N | 4 | 10kA | C |
| BC63H2CL-3N006B | 3P+N | 6 | 10kA | C |
| BC63H2CL-3N010B | 3P+N | 10 | 10kA | C |
| BC63H2CL-3N016B | 3P+N | 16 | 10kA | C |
| BC63H2CL-3N020B | 3P+N | 20 | 10kA | C |
| BC63H2CL-3N025B | 3P+N | 25 | 10kA | C |
| BC63H2CL-3N032B | 3P+N | 32 | 10kA | C |
| BC63H2CL-3N040B | 3P+N | 40 | 10kA | C |
| BC63H2CL-3N050B | 3P+N | 50 | 10kA | C |
| BC63H2CL-3N063B | 3P+N | 63 | 10kA | C |
| BC63H2DL-3N001B | 3P+N | 1 | 10kA | D |
| BC63H2DL-3N002B | 3P+N | 2 | 10kA | D |
| BC63H2DL-3N003B | 3P+N | 3 | 10kA | D |
| BC63H2DL-3N004B | 3P+N | 4 | 10kA | D |
| BC63H2DL-3N006B | 3P+N | 6 | 10kA | D |
| BC63H2DL-3N010B | 3P+N | 10 | 10kA | D |
| BC63H2DL-3N016B | 3P+N | 16 | 10kA | D |
| BC63H2DL-3N020B | 3P+N | 20 | 10kA | D |
| BC63H2DL-3N025B | 3P+N | 25 | 10kA | D |
| BC63H2DL-3N032B | 3P+N | 32 | 10kA | D |
| BC63H2DL-3N040B | 3P+N | 40 | 10kA | D |
| BC63H2DL-3N050B | 3P+N | 50 | 10kA | D |
| BC63H2DL-3N063B | 3P+N | 63 | 10kA | D |
| BC63H2CL-4P001B | 4P | 1 | 10kA | C |
| BC63H2CL-4P002B | 4P | 2 | 10kA | C |
| BC63H2CL-4P003B | 4P | 3 | 10kA | C |
| BC63H2CL-4P004B | 4P | 4 | 10kA | C |
| BC63H2CL-4P006B | 4P | 6 | 10kA | C |
| BC63H2CL-4P010B | 4P | 10 | 10kA | C |
| BC63H2CL-4P016B | 4P | 16 | 10kA | C |
| BC63H2CL-4P020B | 4P | 20 | 10kA | C |
| BC63H2CL-4P025B | 4P | 25 | 10kA | C |
| BC63H2CL-4P032B | 4P | 32 | 10kA | C |
| BC63H2CL-4P040B | 4P | 40 | 10kA | C |
| BC63H2CL-4P050B | 4P | 50 | 10kA | C |
| BC63H2CL-4P063B | 4P | 63 | 10kA | C |
| BC63H2DL-4P001B | 4P | 1 | 10kA | D |
| BC63H2DL-4P002B | 4P | 2 | 10kA | D |
| BC63H2DL-4P003B | 4P | 3 | 10kA | D |
| BC63H2DL-4P004B | 4P | 4 | 10kA | D |
| BC63H2DL-4P006B | 4P | 6 | 10kA | D |
| BC63H2DL-4P010B | 4P | 10 | 10kA | D |
| BC63H2DL-4P016B | 4P | 16 | 10kA | D |
| BC63H2DL-4P020B | 4P | 20 | 10kA | D |
| BC63H2DL-4P025B | 4P | 25 | 10kA | D |
| BC63H2DL-4P032B | 4P | 32 | 10kA | D |
| BC63H2DL-4P040B | 4P | 40 | 10kA | D |
| BC63H2DL-4P050B | 4P | 50 | 10kA | D |
| BC63H2DL-4P063B | 4P | 63 | 10kA | D |
| 注:尾缀 B---额定剩余动作电流30mA | ||||
| 7.11 附件(10kA) | ||||
| 型 号 | 附件名称 | 附件描述 | ||
| BC9W1SH2 | BC63用辅助接点 | 侧面安装 | ||
| BC9K1SH2 | BC63用报警接点 | 侧面安装 | ||
| BC9FRH2 | BC63用MX+OF | 24V DC | ||
| BC9FSH2 | BC63用MX+OF | 48V DC | ||
| BC9FKH2 | BC63用MX+OF | 230VAC | ||
| BC9FPH2 | BC63用MX+OF | 400V DC | ||
