日本FUJI富士,BC63E2CL,BC63H2DL剩余电流动作漏电断路器
时间：2024-10-18 浏览次数：50 编辑：上海韩有

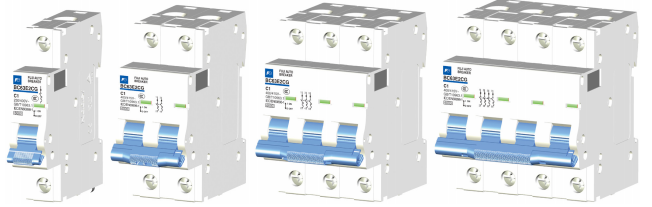

剩余电流动作断路器 BC63E2□L, BC63H2□L
适用范围与用途
短路保护
过载保护
隔离
直流系统保护
BC-E及-H系列剩余电流动作断路器对对地漏电，人体直接或间接触电等故障进行保护,适用于工业、
通信及基础建设等领域低压终端配电。
C 型曲线 : 保护常规负载和配电线缆
D 型曲线 : 保护起动电流大的冲击性负载（如电动机、变压器等）

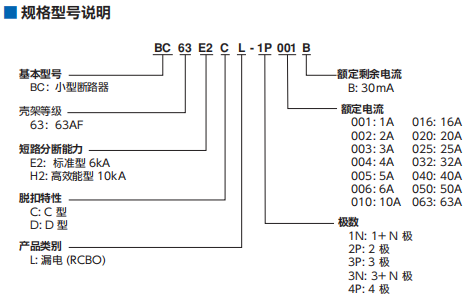

■ 型号
• 短路分断能力: 6kA产品 (E2）
1+N极 2 极 3 极
In C D C D C D
1 BC63E2CL-1N001B BC63E2DL-1N001B BC63E2CL-2P001B BC63E2DL-2P001B BC63E2CL-3P001B BC63E2DL-3P001B
2 BC63E2CL-1N002B BC63E2DL-1N002B BC63E2CL-2P002B BC63E2DL-2P002B BC63E2CL-3P002B BC63E2DL-3P002B
3 BC63E2CL-1N003B BC63E2DL-1N003B BC63E2CL-2P003B BC63E2DL-2P003B BC63E2CL-3P003B BC63E2DL-3P003B
4 BC63E2CL-1N004B BC63E2DL-1N004B BC63E2CL-2P004B BC63E2DL-2P004B BC63E2CL-3P004B BC63E2DL-3P004B
5 BC63E2CL-1N005B BC63E2DL-1N005B BC63E2CL-2P005B BC63E2DL-2P005B BC63E2CL-3P005B BC63E2DL-3P005B
6 BC63E2CL-1N006B BC63E2DL-1N006B BC63E2CL-2P006B BC63E2DL-2P006B BC63E2CL-3P006B BC63E2DL-3P006B
10 BC63E2CL-1N010B BC63E2DL-1N010B BC63E2CL-2P010B BC63E2DL-2P010B BC63E2CL-3P010B BC63E2DL-3P010B
16 BC63E2CL-1N016B BC63E2DL-1N016B BC63E2CL-2P016B BC63E2DL-2P016B BC63E2CL-3P016B BC63E2DL-3P016B
20 BC63E2CL-1N020B BC63E2DL-1N020B BC63E2CL-2P020B BC63E2DL-2P020B BC63E2CL-3P020B BC63E2DL-3P020B
25 BC63E2CL-1N025B BC63E2DL-1N025B BC63E2CL-2P025B BC63E2DL-2P025B BC63E2CL-3P025B BC63E2DL-3P025B
32 BC63E2CL-1N032B BC63E2DL-1N032B BC63E2CL-2P032B BC63E2DL-2P032B BC63E2CL-3P032B BC63E2DL-3P032B
40 BC63E2CL-1N040B BC63E2DL-1N040B BC63E2CL-2P040B BC63E2DL-2P040B BC63E2CL-3P040B BC63E2DL-3P040B
50 BC63E2CL-1N050B BC63E2DL-1N050B BC63E2CL-2P050B BC63E2DL-2P050B BC63E2CL-3P050B BC63E2DL-3P050B
63 BC63E2CL-1N063B BC63E2DL-1N063B BC63E2CL-2P063B BC63E2DL-2P063B BC63E2CL-3P063B BC63E2DL-3P063B
• 短路分断能力: 10 kA产品 (H2）
剩余电流动作断路器 BC63E2□L, BC63H2□L
1+N极 2 极 3 极
In C D C D C D
1 BC63H2CL-1N001B BC63H2DL-1N001B BC63H2CL-2P001B BC63H2DL-2P001B BC63H2CL-3P001B BC63H2DL-3P001B
2 BC63H2CL-1N002B BC63H2DL-1N002B BC63H2CL-2P002B BC63H2DL-2P002B BC63H2CL-3P002B BC63H2DL-3P002B
3 BC63H2CL-1N003B BC63H2DL-1N003B BC63H2CL-2P003B BC63H2DL-2P003B BC63H2CL-3P003B BC63H2DL-3P003B
4 BC63H2CL-1N004B BC63H2DL-1N004B BC63H2CL-2P004B BC63H2DL-2P004B BC63H2CL-3P004B BC63H2DL-3P004B
5 BC63H2CL-1N005B BC63H2DL-1N005B BC63H2CL-2P005B BC63H2DL-2P005B BC63H2CL-3P005B BC63H2DL-3P005B
6 BC63H2CL-1N006B BC63H2DL-1N006B BC63H2CL-2P006B BC63H2DL-2P006B BC63H2CL-3P006B BC63H2DL-3P006B
10 BC63H2CL-1N010B BC63H2DL-1N010B BC63H2CL-2P010B BC63H2DL-2P010B BC63H2CL-3P010B BC63H2DL-3P010B
16 BC63H2CL-1N016B BC63H2DL-1N016B BC63H2CL-2P016B BC63H2DL-2P016B BC63H2CL-3P016B BC63H2DL-3P016B
20 BC63H2CL-1N020B BC63H2DL-1N020B BC63H2CL-2P020B BC63H2DL-2P020B BC63H2CL-3P020B BC63H2DL-3P020B
25 BC63H2CL-1N025B BC63H2DL-1N025B BC63H2CL-2P025B BC63H2DL-2P025B BC63H2CL-3P025B BC63H2DL-3P025B
32 BC63H2CL-1N032B BC63H2DL-1N032B BC63H2CL-2P032B BC63H2DL-2P032B BC63H2CL-3P032B BC63H2DL-3P032B
40 BC63H2CL-1N040B BC63H2DL-1N040B BC63H2CL-2P040B BC63H2DL-2P040B BC63H2CL-3P040B BC63H2DL-3P040B
50 BC63H2CL-1N050B BC63H2DL-1N050B BC63H2CL-2P050B BC63H2DL-2P050B BC63H2CL-3P050B BC63H2DL-3P050B
63 BC63H2CL-1N063B BC63H2DL-1N063B BC63H2CL-2P063B BC63H2DL-2P063B BC63H2CL-3P063B BC63H2DL-3P063B
3+N 极 4 极
In C D C D
1 BC63E2CL-3N001B BC63E2DL-3N001B BC63E2CL-4P001B BC63E2DL-4P001B
2 BC63E2CL-3N002B BC63E2DL-3N002B BC63E2CL-4P002B BC63E2DL-4P002B
3 BC63E2CL-3N003B BC63E2DL-3N003B BC63E2CL-4P003B BC63E2DL-4P003B
4 BC63E2CL-3N004B BC63E2DL-3N004B BC63E2CL-4P004B BC63E2DL-4P004B
5 BC63E2CL-3N005B BC63E2DL-3N005B BC63E2CL-4P005B BC63E2DL-4P005B
6 BC63E2CL-3N006B BC63E2DL-3N006B BC63E2CL-4P006B BC63E2DL-4P006B
10 BC63E2CL-3N010B BC63E2DL-3N010B BC63E2CL-4P010B BC63E2DL-4P010B
16 BC63E2CL-3N016B BC63E2DL-3N016B BC63E2CL-4P016B BC63E2DL-4P016B
20 BC63E2CL-3N020B BC63E2DL-3N020B BC63E2CL-4P020B BC63E2DL-4P020B
25 BC63E2CL-3N025B BC63E2DL-3N025B BC63E2CL-4P025B BC63E2DL-4P025B
32 BC63E2CL-3N032B BC63E2DL-3N032B BC63E2CL-4P032B BC63E2DL-4P032B
40 BC63E2CL-3N040B BC63E2DL-3N040B BC63E2CL-4P040B BC63E2DL-4P040B
50 BC63E2CL-3N050B BC63E2DL-3N050B BC63E2CL-4P050B BC63E2DL-4P050B
63 BC63E2CL-3N063B BC63E2DL-3N063B BC63E2CL-4P063B BC63E2DL-4P063B
3+N 极 4 极
In C D C D
1 BC63H2CL-3N001B BC63H2DL-3N001B BC63H2CL-4P001B BC63H2DL-4P001B
2 BC63H2CL-3N002B BC63H2DL-3N002B BC63H2CL-4P002B BC63H2DL-4P002B
3 BC63H2CL-3N003B BC63H2DL-3N003B BC63H2CL-4P003B BC63H2DL-4P003B
4 BC63H2CL-3N004B BC63H2DL-3N004B BC63H2CL-4P004B BC63H2DL-4P004B
5 BC63H2CL-3N005B BC63H2DL-3N005B BC63H2CL-4P005B BC63H2DL-4P005B
6 BC63H2CL-3N006B BC63H2DL-3N006B BC63H2CL-4P006B BC63H2DL-4P006B
10 BC63H2CL-3N010B BC63H2DL-3N010B BC63H2CL-4P010B BC63H2DL-4P010B
16 BC63H2CL-3N016B BC63H2DL-3N016B BC63H2CL-4P016B BC63H2DL-4P016B
20 BC63H2CL-3N020B BC63H2DL-3N020B BC63H2CL-4P020B BC63H2DL-4P020B
25 BC63H2CL-3N025B BC63H2DL-3N025B BC63H2CL-4P025B BC63H2DL-4P025B
32 BC63H2CL-3N032B BC63H2DL-3N032B BC63H2CL-4P032B BC63H2DL-4P032B
40 BC63H2CL-3N040B BC63H2DL-3N040B BC63H2CL-4P040B BC63H2DL-4P040B
50 BC63H2CL-3N050B BC63H2DL-3N050B BC63H2CL-4P050B BC63H2DL-4P050B
63 BC63H2CL-3N063B BC63H2DL-3N063B BC63H2CL-4P063B BC63H2DL-4P063B
