  • 产品名称：富士FUJI|塑壳断路器

    产品类别：富士电机|FUJI

    产品简介：标准型号也对应国际规格（(CCC/JIS/IEC/CE/TUV )，小型而高性能。产品阵容增加到4极品型号。 125-400AF的新型塑壳式断路器。

    0

产品说明

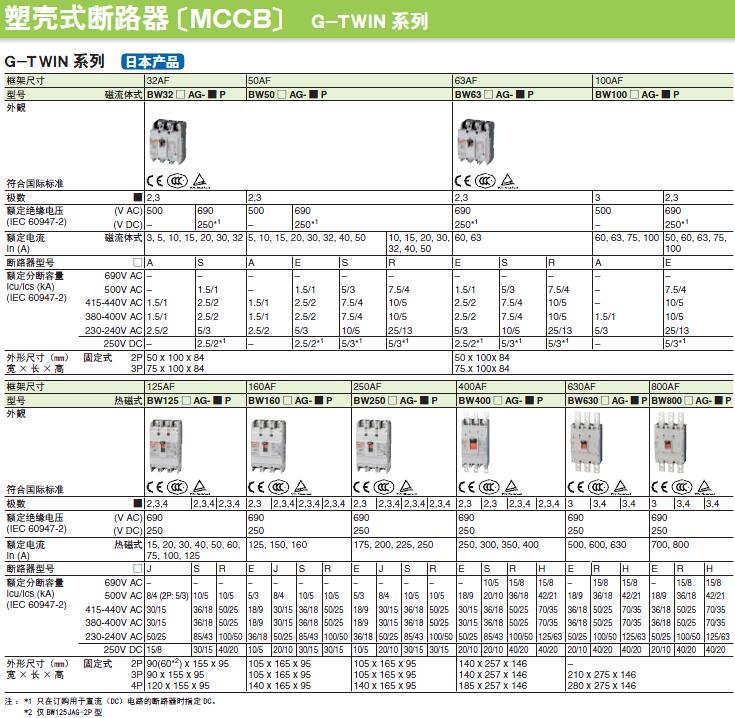

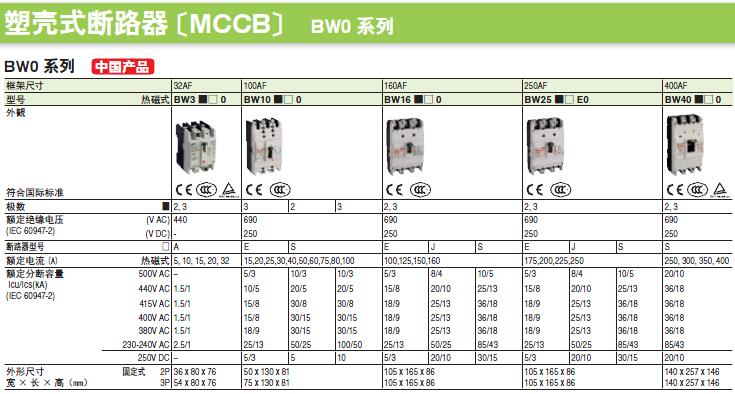

型   号 額    定    电    流       分断容量Icu / Ics(kA)
  ( A )#       AC230V AC400V
BW32AAG-2P#  3,5,10,15,20,30,32       2.5/2 1.5/1
BW32AAG-3P#  3,5,10,15,20,30,32       2.5/2 1.5/1
BW32SAG-2P#  3,5,10,15,20,30,32       5/3 2.5/2
BW32SAG-3P#  3,5,10,15,20,30,32       5/3 2.5/2
BW50AAG-2P#  5,10,15,20,30,32,40,50       2.5/2 1.5/1
BW50AAG-3P#  5,10,15,20,30,32,40,50       2.5/2 1.5/1
BW50EAG-2P#  5,10,15,20,30,32,40,50       5/3 2.5/2
BW50EAG-3P#  5,10,15,20,30,32,40,50       5/3 2.5/2
BW50SAG-2P#  5,10,15,20,30,32,40,50       10/5 7.5/4
BW50SAG-3P# 5,10,15,20,30,32,40,50       10/5 7.5/4
BW50RAG-2P# 5,10,15,20,30,32,40,50       25/13 10/5
BW50RAG-3P# 5,10,15,20,30,32,40,50       25/13 10/5
BW63EAG-2P#  60,63       5/3 2.5/2
BW63EAG-3P# 60,63       5/3 2.5/2
BW63SAG-2P#  60,63       10/5 7.5/4
BW63SAG-3P# 60,63       10/5 7.5/4
BW63RAG-2P#  60,63       25/13 10/5
BW63RAG-3P#  60,63       25/13 10/5
BW100EAG-2P#  50,60,63,75,100       25/13 10/5
BW100EAG-3P#  50,60,63,75,100       25/13 10/5
BW125JAG-2P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       50 / 25 30 / 15
BW125JAG-3P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       50 / 25 30 / 15
BW125JAG-4P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       50 / 25 30 / 15
BW125RAG-2P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       100 / 50 50 / 25
BW125RAG-3P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       100 / 50 50 / 25
BW125RAG-4P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       100 / 50 50 / 25
BW250EAG-2P# CJ 125, 150, 160, 175, 200,  225,  250       36 / 18 18 / 9
BW250EAG-3P# CJ 125, 150, 160, 175, 200,  225,  250       36 / 18 18 / 9
BW250JAG-2P# CJ 125, 150, 160, 175, 200,  225,  250       50/25 30/15
BW250JAG-3P# CJ 125, 150, 160, 175, 200,  225,  250       50/25 30/15
BW250JAG-4P# CJ 125, 150, 160, 175, 200,  225,  250       50/25 30/15
BW250RAG-2P# CJ 125, 150, 160, 175, 200,  225,  250       100/50 50/25
BW250RAG-3P# CJ 125, 150, 160, 175, 200,  225,  250       100/50 50/25
BW250RAG-4P# CJ 125, 150, 160, 175, 200,  225,  250       100/50 50/25
BW400EAG-2P# CJ 250,  300,  350,  400       50/25 30/15
BW400EAG-3P# CJ 250,  300,  350,  400       50/25 30/15
BW400SAG-2P# CJ 250,  300,  350,  400       85/43 36/18
BW400SAG-3P# CJ 250,  300,  350,  400       85/43 36/18
BW400RAG-2P# CJ 250,  300,  350,  400       100/50 50/25
BW400RAG-3P# CJ 250,  300,  350,  400       100/50 50/25
BW400RAG-4P# CJ 250,  300,  350,  400       100/50 50/25
BW400HAG-2P# CJ 250,  300,  350,  400       125/63 70/35
BW400HAG-3P# CJ 250,  300,  350,  400       125/63 70/35
BW400HAG-4P# CJ 250,  300,  350,  400       125/63 70/35
BW630EAG-3P# CJ  500,  630       50 / 25 30 / 15
BW630RAG-3P# CJ  500,  630       100/50 50/25
BW630RAG-4P# CJ  500,  630       100/50 50/25
BW630HAG-3P# CJ  500,  630       125/63 70/35
BW630HAG-4P# CJ  500,  630       125/63 70/35
BW800EAG-3P# CJ  700,  800       50 / 25 30 / 15
BW800RAG-3P# CJ  700,  800       100/50 50/25
BW800RAG-4P# CJ  700,  800       100/50 50/25
BW800HAG-3P# CJ  700,  800       125/63 70/35
BW800HAG-4P# CJ  700,  800       125/63 70/35

6.3.2  MCCB  --  2, 3极（全球品）
型   号 額    定    电    流       分断容量Icu / Ics(kA)
  ( A )#       AC230V AC400V
BW50RAGU-2P# CJ 3,5,10,15,20,30,32,40,50       25/13 10/5
BW50RAGU-3P# CJ 3,5,10,15,20,30,32,40,50       25/13 10/5
BW100EAGU-2P# CJ 60,63,70,75,80,90,100       25/13 10/5
BW100EAGU-3P# CJ 60,63,70,75,80,90,100       25/13 10/5
BW125JAGU-2P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       50 / 25 30 / 15
BW125JAGU-3P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       50 / 25 30 / 15
BW125RAGU-2P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       100 / 50 50 / 25
BW125RAGU-3P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125       100 / 50 50 / 25
BW250EAGU-2P# CJ 125, 150, 160, 175, 200,  225,  250       36 / 18 18 / 9
BW250EAGU-3P# CJ 125, 150, 160, 175, 200,  225,  250       36 / 18 18 / 9
BW250JAGU-2P# CJ 125, 150, 160, 175, 200,  225,  250       50/25 30/15
BW250JAGU-3P# CJ 125, 150, 160, 175, 200,  225,  250       50/25 30/15
BW250RAGU-2P# CJ 125, 150, 160, 175, 200,  225,  250       100/50 50/25
BW250RAGU-3P# CJ 125, 150, 160, 175, 200,  225,  250       100/50 50/25
BW400EAGU-2P# CJ 250,  300,  350,  400       50/25 30/15
BW400EAGU-3P# CJ 250,  300,  350,  400       50/25 30/15
BW400SAGU-2P# CJ 250,  300,  350,  400       85/43 36/18
BW400SAGU-3P# CJ 250,  300,  350,  400       85/43 36/18
BW400RAGU-2P# CJ 250,  300,  350,  400       100/50 50/25
BW400RAGU-3P# CJ 250,  300,  350,  400       100/50 50/25
BW400HAGU-2P# CJ 250,  300,  350,  400       125/63 70/35
BW400HAGU-3P# CJ 250,  300,  350,  400       125/63 70/35
BW630RAGU-3P# CJ  500,  630       100/50 50/25
BW630HAGU-3P# CJ  500,  630       125/63 70/35
BW800RAGU-3P# CJ  700,  800       100/50 50/25
BW800HAGU-3P# CJ  700,  800       125/63 70/35

6.3.3  ELCB  --   3,4极（标准品）
型   号 額    定    电    流 額定剩余动作电流 分断容量Icu / Ics(kA)
  ( A )# (mA)$ AC230V AC400V
EW32AAG-2P#$  3,5,10,15,20,30,32     15,30,100 2.5/2 1.5/1
EW32AAG-3P#$  3,5,10,15,20,30,32     15,30,100 2.5/2
EW32EAG-3P#$  3,5,10,15,20,30,32     15,30,100 2.5/2 1.5/1
EW32SAG-3P#$  3,5,10,15,20,30,32     30,100/200/500 5/3 2.5/2
EW50AAG-2P#$  5,10,15,20,30,32,40,50     15,30,100 2.5/2
EW50AAG-3P#$  5,10,15,20,30,32,40,50     15,30,100 2.5/2
EW50EAG-3P#$  5,10,15,20,30,32,40,50     15,30,100/200 5/3 2.5/2
EW50SAG-3P#$  5,10,15,20,30,32,40,50     30,100/200/500 10/5 7.5/4
EW50RAG-3P#$  5,10,15,20,30,32,40,50     30,100/200/500 25/13 10/5
EW63EAG-3P#$  60,63     15,30,100/200 5/3 2.5/2
EW63SAG-3P#$  60,63     30,100/200/500 10/5 7.5/4
EW63RAG-3P#$  60,63     30,100/200/500 25/13 10/5
EW100EAG-2P#$  50,60,63,75,100     30,100/200/500 10/5
EW100AAG-3P#$  60,63,75,100     30,100/200 5/3
EW100EAG-3P#$  50,60,63,75,100     30,100/200/500 25/13 10/5
EW125JAG-3P#$ CJ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 50 / 25 30 / 15
EW125JAG-4P#$ CJ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 50 / 25 30 / 15
EW125RAG-3P#$ CJ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 100 / 50 50 / 25
EW125RAG-4P#$ CJ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 100 / 50 50 / 25
EW250EAG-3P#$ CJ 125,150,160,175,200,225,250     30,100/300/500/1000 36 / 18 18 / 9
EW250JAG-3P#$ CJ 125,150,160,175,200,225,250     30,100/300/500/1000 50 / 25 30 / 15
EW250JAG-4P#$ CJ 125,150,160,175,200,225,250     30,100/300/500/1000 50 / 25 30 / 15
EW250RAG-3P#$ CJ 125,150,160,175,200,225,250     30,100/300/500/1000 100/50 50/25
EW250RAG-4P#$ CJ 125,150,160,175,200,225,250     30,100/300/500/1000 100/50 50/25
EW400EAG-3P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 50 / 25 30 / 15
EW400SAG-3P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 85 / 43 36 / 18
EW400RAG-3P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 100/50 50/25
EW400RAG-4P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 100/50 50/25
EW400HAG-3P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 125/63 70/35
EW400HAG-4P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 125/63 70/35
EW630EAG-3P#$ CJ  500,  630       50 / 25 30 / 15
EW630RAG-3P#$ CJ  500,  630     30,100/300/500/1000 100/50 50/25
EW630RAG-4P#$ CJ  500,  630     30,100/300/500/1000 100/50 50/25
EW630HAG-3P#$ CJ  500,  630     30,100/300/500/1000 125/63 70/35
EW630HAG-4P#$ CJ  500,  630     30,100/300/500/1000 125/63 70/35
EW800EAG-3P#$ CJ  700,  800     30,100/300/500/1000 50 / 25 30 / 15
EW800RAG-3P#$ CJ  700,  800     30,100/300/500/1000 100/50 50/25
EW800RAG-4P#$ CJ  700,  800     30,100/300/500/1000 100/50 50/25
EW800HAG-3P#$ CJ  700,  800     30,100/300/500/1000 125/63 70/35
EW800HAG-4P#$ CJ  700,  800     30,100/300/500/1000 125/63 70/35

6.3.4  ELCB  --  3极（全球品）
型   号 額    定    电    流 額定剩余动作电流 分断容量Icu / Ics(kA)
  ( A )# (mA)$ AC230V AC400V
EW50RAGU-3P#$ CJ 3,5,10,15,20,30,32,40,50     30,50,100/200/500 25/13 10/5
EW100EAGU-2P#$ CJ 60,63,70,75,80,90,100     30,100/200 10/5
EW100EAGU-3P#$ CJ 60,63,70,75,80,90,100     30,50,100/200/500 25/13 10/5
EW125JAGU-3P#$ CJ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 50 / 25 30 / 15
EW125RAGU-3P#$ CJ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 100 / 50 50 / 25
EW250JAGU-3P#$ CJ 125,150,160,175,200,225,250     30,100/300/500/1000 50 / 25 30 / 15
EW250RAGU-3P#$ CJ 125,150,160,175,200,225,250     30,100/300/500/1000 100/50 50/25
EW400SAGU-3P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 85 / 43 36 / 18
EW400RAGU-3P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 100/50 50/25
EW400HAGU-3P#$ CJ 250,  300,  350,  400     30,100/300/500/1000 125/63 70/35
EW630RAGU-3P#$ CJ  500,  630     30,100/300/500/1000 100/50 50/25

型   号 額    定    电    流       分断容量Icu / Ics(kA)
  ( A )#       AC230V AC400V
BW125JAGC-2P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       50 / 25 30 / 15
BW125JAGC-3P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       50 / 25 30 / 15
BW125JAGC-4P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       50 / 25 30 / 15
BW125SAGC-2P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       85 / 43 36 / 18
BW125SAGC-3P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       85 / 43 36 / 18
BW125SAGC-4P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       85 / 43 36 / 18
BW125RAGC-2P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       100 / 50 50 / 25
BW125RAGC-3P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       100 / 50 50 / 25
BW125RAGC-4P# 15, 20 ,30, 40, 50, 60, 75, 100, 125       100 / 50 50 / 25
BW160EAGC-2P# 125, 150 ,160       36 / 18 18 / 9
BW160EAGC-3P# 125, 150 ,160       36 / 18 18 / 9
BW160JAGC-2P# 125, 150 ,160       50 / 25 30 / 15
BW160JAGC-3P# 125, 150 ,160       50 / 25 30 / 15
BW160JAGC-4P# 125, 150 ,160       50 / 25 30 / 15
BW160SAGC-2P# 125, 150 ,160       85/43 36/18
BW160SAGC-3P# 125, 150 ,160       85/43 36/18
BW160SAGC-4P# 125, 150 ,160       85/43 36/18
BW160RAGC-2P# 125, 150 ,160       100/50 50/25
BW160RAGC-3P# 125, 150 ,160       100/50 50/25
BW160RAGC-4P# 125, 150 ,160       100/50 50/25
BW250EAGC-2P# 175,  200,  225,  250       36 / 18 18 / 9
BW250EAGC-3P# 175,  200,  225,  250       36 / 18 18 / 9
BW250JAGC-2P# 175,  200,  225,  250       50/25 30/15
BW250JAGC-3P# 175,  200,  225,  250       50/25 30/15
BW250JAGC-4P# 175,  200,  225,  250       50/25 30/15
BW250SAGC-2P# 175,  200,  225,  250       85/43 36/18
BW250SAGC-3P# 175,  200,  225,  250       85/43 36/18
BW250SAGC-4P# 175,  200,  225,  250       85/43 36/18
BW250RAGC-2P# 175,  200,  225,  250       100/50 50/25
BW250RAGC-3P# 175,  200,  225,  250       100/50 50/25
BW250RAGC-4P# 175,  200,  225,  250       100/50 50/25
BW400EAGC-2P# 250,  300,  350,  400       50/25 30/15
BW400EAGC-3P# 250,  300,  350,  400       50/25 30/15
BW400SAGC-2P# 250,  300,  350,  400       85/43 36/18
BW400SAGC-3P# 250,  300,  350,  400       85/43 36/18
BW400RAGC-2P# 250,  300,  350,  400       100/50 50/25
BW400RAGC-3P# 250,  300,  350,  400       100/50 50/25
BW400RAGC-4P# 250,  300,  350,  400       100/50 50/25

6.2.2  ELCB  --  2, 3,4极
型   号 額    定    电    流 額定剩余动作电流 分断容量Icu / Ics(kA)
  ( A )# (mA)$ AC230V AC400V
EW125JAGC-3P#$ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 50 / 25 30 / 15
EW125JAGC-4P#$ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 50 / 25 30 / 15
EW125SAGC-3P#$ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 85 / 43 36 / 18
EW125SAGC-4P#$ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 85 / 43 36 / 18
EW125RAGC-3P#$ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 100 / 50 50 / 25
EW125RAGC-4P#$ 15,20,30,40,50,60,75,100,125     30,100/300/500/1000 100 / 50 50 / 25
EW160EAGC-3P#$ 125, 150 ,160     30,100/300/500/1000 36 / 18 18 / 9
EW160JAGC-3P#$ 125, 150 ,160     30,100/300/500/1000 50 / 25 30 / 15
EW160JAGC-4P#$ 125, 150 ,160     30,100/300/500/1000 50 / 25 30 / 15
EW160SAGC-3P#$ 125, 150 ,160     30,100/300/500/1000 85 / 43 36 / 18
EW160SAGC-4P#$ 125, 150 ,160     30,100/300/500/1000 85 / 43 36 / 18
EW160RAGC-3P#$ 125, 150 ,160     30,100/300/500/1000 100 / 50 50 / 25
EW160RAGC-4P#$ 125, 150 ,160     30,100/300/500/1000 100 / 50 50 / 25
EW250EAGC-3P#$ 175,  200,  225,  250     30,100/300/500/1000 36 / 18 18 / 9
EW250JAGC-3P#$ 175,  200,  225,  250     30,100/300/500/1000 50 / 25 30 / 15
EW250JAGC-4P#$ 175,  200,  225     30,100/300/500/1000 50 / 25 30 / 15
EW250SAGC-3P#$ 175,  200,  225,  250     30,100/300/500/1000 85 / 43 36 / 18
EW250SAGC-4P#$ 175,  200,  225     30,100/300/500/1000 85 / 43 36 / 18
EW250RAGC-3P#$ 175,  200,  225,  250     30,100/300/500/1000 100/50 50/25
EW250RAGC-4P#$ 175,  200,  225       30,100/300/500/1000 100/50 50/25
EW400EAGC-3P#$ 250,  300,  350,  400     30,100/300/500/1000 50 / 25 30 / 15
EW400SAGC-3P#$ 250,  300,  350,  400     30,100/300/500/1000 85 / 43 36 / 18
EW400RAGC-3P#$ 250,  300,  350,  400     30,100/300/500/1000 100/50 50/25
EW400RAGC-4P#$ 250,  300,  350,  400     30,100/300/500/1000 100/50 50/25
注:額定剩余动作电流$  B表示30mA,  J表示100/200/500/1000mA.


型   号 額    定    电    流         分 断 容 量Icu / Ics(kA)
  ( A )         AC230V AC380V
BW32A0  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0  5,10,15,20,30,32         2.5/1 1.5/1
BW103E0  15,20,25,30,40,50,60,75,80,100         25/13  18/5
BW102S0  15,20,25,30,40,50,60,75,80,100         85/22  35/9
BW103S0  15,20,25,30,40,50,60,75,80,100         85/22  35/9
BW162E0  100，125，150，160         25/13  18/9
BW163E0  100，125，150，160         25/13  18/9
BW162J0  100，125，150，160         50/25 25/13
BW163J0  100，125，150，160         50/25 25/13
BW162S0  100，125，150，160         85/43 36/18
BW163S0  100，125，150，160         85/43 36/18
BW252E0  175，200，225，250         25/13  18/9
BW253E0  175，200，225，250         25/13  18/9
BW252J0  175，200，225，250         50/15 25/13
BW253J0  175，200，225，250         50/15 25/13
BW252S0  175，200，225，250         85/43 36/18
BW253S0  175，200，225，250         85/43 36/18
BW32A0-□W  5,10,15,20,30,32         2.5/1 1.5/1
BW32A0-□WA  5,10,15,20,30,32         2.5/1 1.5/1
BW32A0-□K  5,10,15,20,30,32         2.5/1 1.5/1
BW32A0-□KA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□W  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□WA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□K  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□KA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□WK  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□WKA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□FA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□FAA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□WFA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□WFAA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□KFA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□KFAA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□WKFA  5,10,15,20,30,32         2.5/1 1.5/1
BW33A0-□WKFAA  5,10,15,20,30,32         2.5/1 1.5/1



相关产品

联系方式
电话：15921693880 传真：021-54411930
邮箱：sh@hanyouauto.com
QQ：931696484
地址：上海市闵行区中春路7001号1号楼309室

版权所有：上海韩有电子科技有限公司网站

备案号：沪ICP备2021006693号-1
