  • 产品名称：富士FUJI|小型断路器|漏电开关

    产品类别：富士电机|FUJI

    产品简介：本系列小型断路器是以保护住宅或类似设施中的配电设备免受过电流破坏为目的。

    0

产品说明



安装漏电断路器的目的
防止因电气设备漏电导致的危险和损坏(如电击、电气火灾和设备损坏)

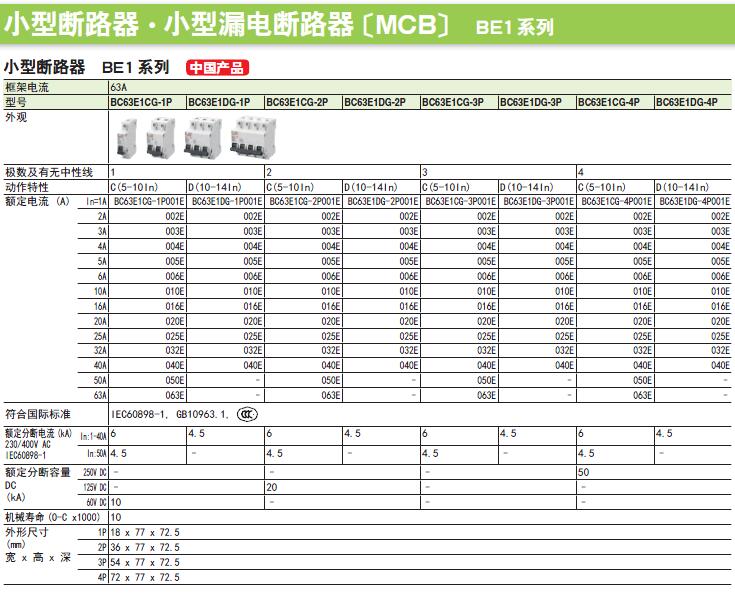

7.MCB小型断路器
7.1  BC63系列小型断路器
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) AC230/400V（kA）
BC63E2CG-1P001 1P 1 6kA C
BC63E2CG-1P002 1P 2 6kA C
BC63E2CG-1P003 1P 3 6kA C
BC63E2CG-1P004 1P 4 6kA C
BC63E2CG-1P005 1P 5 6kA C
BC63E2CG-1P006 1P 6 6kA C
BC63E2CG-1P010 1P 10 6kA C
BC63E2CG-1P016 1P 16 6kA C
BC63E2CG-1P020 1P 20 6kA C
BC63E2CG-1P025 1P 25 6kA C
BC63E2CG-1P032 1P 32 6kA C
BC63E2CG-1P040 1P 40 6kA C
BC63E2CG-1P050 1P 50 6kA C
BC63E2CG-1P063 1P 63 6kA C
BC63E2DG-1P001 1P 1 6kA D
BC63E2DG-1P002 1P 2 6kA D
BC63E2DG-1P003 1P 3 6kA D
BC63E2DG-1P004 1P 4 6kA D
BC63E2DG-1P005 1P 5 6kA D
BC63E2DG-1P006 1P 6 6kA D
BC63E2DG-1P010 1P 10 6kA D
BC63E2DG-1P016 1P 16 6kA D
BC63E2DG-1P020 1P 20 6kA D
BC63E2DG-1P025 1P 25 6kA D
BC63E2DG-1P032 1P 32 6kA D
BC63E2DG-1P040 1P 40 6kA D
BC63E2DG-1P050 1P 50 6kA D
BC63E2DG-1P063 1P 63 6kA D
BC63E2CG-2P001 2P 1 6kA C
BC63E2CG-2P002 2P 2 6kA C
BC63E2CG-2P003 2P 3 6kA C
BC63E2CG-2P004 2P 4 6kA C
BC63E2CG-2P005 2P 5 6kA C
BC63E2CG-2P006 2P 6 6kA C
BC63E2CG-2P010 2P 10 6kA C
BC63E2CG-2P016 2P 16 6kA C
BC63E2CG-2P020 2P 20 6kA C
BC63E2CG-2P025 2P 25 6kA C
BC63E2CG-2P032 2P 32 6kA C
BC63E2CG-2P040 2P 40 6kA C
BC63E2CG-2P050 2P 50 6kA C
BC63E2CG-2P063 2P 63 6kA C
BC63E2DG-2P001 2P 1 6kA D
BC63E2DG-2P002 2P 2 6kA D
BC63E2DG-2P003 2P 3 6kA D
BC63E2DG-2P004 2P 4 6kA D
BC63E2DG-2P005 2P 5 6kA D
BC63E2DG-2P006 2P 6 6kA D
BC63E2DG-2P010 2P 10 6kA D
BC63E2DG-2P016 2P 16 6kA D
BC63E2DG-2P020 2P 20 6kA D
BC63E2DG-2P025 2P 25 6kA D
BC63E2DG-2P032 2P 32 6kA D
BC63E2DG-2P040 2P 40 6kA D
BC63E2DG-2P050 2P 50 6kA D
BC63E2DG-2P063 2P 63 6kA D
BC63E2CG-3P001 3P 1 6kA C
BC63E2CG-3P002 3P 2 6kA C
BC63E2CG-3P003 3P 3 6kA C
BC63E2CG-3P004 3P 4 6kA C
BC63E2CG-3P005 3P 5 6kA C
BC63E2CG-3P006 3P 6 6kA C
BC63E2CG-3P010 3P 10 6kA C
BC63E2CG-3P016 3P 16 6kA C
BC63E2CG-3P020 3P 20 6kA C
BC63E2CG-3P025 3P 25 6kA C
BC63E2CG-3P032 3P 32 6kA C
BC63E2CG-3P040 3P 40 6kA C
BC63E2CG-3P050 3P 50 6kA C
BC63E2CG-3P063 3P 63 6kA C
BC63E2DG-3P001 3P 1 6kA D
BC63E2DG-3P002 3P 2 6kA D
BC63E2DG-3P003 3P 3 6kA D
BC63E2DG-3P004 3P 4 6kA D
BC63E2DG-3P005 3P 5 6kA D
BC63E2DG-3P006 3P 6 6kA D
BC63E2DG-3P010 3P 10 6kA D
BC63E2DG-3P016 3P 16 6kA D
BC63E2DG-3P020 3P 20 6kA D
BC63E2DG-3P025 3P 25 6kA D
BC63E2DG-3P032 3P 32 6kA D
BC63E2DG-3P040 3P 40 6kA D
BC63E2DG-3P050 3P 50 6kA D
BC63E2DG-3P063 3P 63 6kA D
BC63E2CG-4P001 4P 1 6kA C
BC63E2CG-4P002 4P 2 6kA C
BC63E2CG-4P003 4P 3 6kA C
BC63E2CG-4P004 4P 4 6kA C
BC63E2CG-4P005 4P 5 6kA C
BC63E2CG-4P006 4P 6 6kA C
BC63E2CG-4P010 4P 10 6kA C
BC63E2CG-4P016 4P 16 6kA C
BC63E2CG-4P020 4P 20 6kA C
BC63E2CG-4P025 4P 25 6kA C
BC63E2CG-4P032 4P 32 6kA C
BC63E2CG-4P040 4P 40 6kA C
BC63E2CG-4P050 4P 50 6kA C
BC63E2CG-4P063 4P 63 6kA C
BC63E2DG-4P001 4P 1 6kA D
BC63E2DG-4P002 4P 2 6kA D
BC63E2DG-4P003 4P 3 6kA D
BC63E2DG-4P004 4P 4 6kA D
BC63E2DG-4P005 4P 5 6kA D
BC63E2DG-4P006 4P 6 6kA D
BC63E2DG-4P010 4P 10 6kA D
BC63E2DG-4P016 4P 16 6kA D
BC63E2DG-4P020 4P 20 6kA D
BC63E2DG-4P025 4P 25 6kA D
BC63E2DG-4P032 4P 32 6kA D
BC63E2DG-4P040 4P 40 6kA D
BC63E2DG-4P050 4P 50 6kA D
BC63E2DG-4P063 4P 63 6kA D

7.2 BC32系列超小型断路器(相线+中性线)
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) （kA）
BC32E2CN-1N006 1P+N 6 4.5kA (230V) C
BC32E2CN-1N010 1P+N 10 4.5kA (230V) C
BC32E2CN-1N016 1P+N 16 4.5kA (230V) C
BC32E2CN-1N020 1P+N 20 4.5kA (230V) C
BC32E2CN-1N025 1P+N 25 4.5kA (230V) C
BC32E2CN-1N032 1P+N 32 4.5kA (230V) C

7.3 BC63系列小型漏电断路器(相线+中性线)
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) （kA）
BC63E2CL-1N001B 1P+N 1 6kA C
BC63E2CL-1N002B 1P+N 2 6kA C
BC63E2CL-1N003B 1P+N 3 6kA C
BC63E2CL-1N004B 1P+N 4 6kA C
BC63E2CL-1N005B 1P+N 5 6kA C
BC63E2CL-1N006B 1P+N 6 6kA C
BC63E2CL-1N010B 1P+N 10 6kA C
BC63E2CL-1N016B 1P+N 16 6kA C
BC63E2CL-1N020B 1P+N 20 6kA C
BC63E2CL-1N025B 1P+N 25 6kA C
BC63E2CL-1N032B 1P+N 32 6kA C
BC63E2CL-1N040B 1P+N 40 6kA C
BC63E2CL-1N050B 1P+N 50 6kA C
BC63E2CL-1N063B 1P+N 63 6kA C
BC63E2DL-1N001B 1P+N 1 6kA D
BC63E2DL-1N002B 1P+N 2 6kA D
BC63E2DL-1N003B 1P+N 3 6kA D
BC63E2DL-1N004B 1P+N 4 6kA D
BC63E2DL-1N005B 1P+N 5 6kA D
BC63E2DL-1N006B 1P+N 6 6kA D
BC63E2DL-1N010B 1P+N 10 6kA D
BC63E2DL-1N016B 1P+N 16 6kA D
BC63E2DL-1N020B 1P+N 20 6kA D
BC63E2DL-1N025B 1P+N 25 6kA D
BC63E2DL-1N032B 1P+N 32 6kA D
BC63E2DL-1N040B 1P+N 40 6kA D
BC63E2DL-1N050B 1P+N 50 6kA D
BC63E2DL-1N063B 1P+N 63 6kA D
BC63E2CL-2P001B 2P 1 6kA C
BC63E2CL-2P002B 2P 2 6kA C
BC63E2CL-2P003B 2P 3 6kA C
BC63E2CL-2P004B 2P 4 6kA C
BC63E2CL-2P005B 2P 5 6kA C
BC63E2CL-2P006B 2P 6 6kA C
BC63E2CL-2P010B 2P 10 6kA C
BC63E2CL-2P016B 2P 16 6kA C
BC63E2CL-2P020B 2P 20 6kA C
BC63E2CL-2P025B 2P 25 6kA C
BC63E2CL-2P032B 2P 32 6kA C
BC63E2CL-2P040B 2P 40 6kA C
BC63E2CL-2P050B 2P 50 6kA C
BC63E2CL-2P063B 2P 63 6kA C
BC63E2DL-2P001B 2P 1 6kA D
BC63E2DL-2P002B 2P 2 6kA D
BC63E2DL-2P003B 2P 3 6kA D
BC63E2DL-2P004B 2P 4 6kA D
BC63E2DL-2P005B 2P 5 6kA D
BC63E2DL-2P006B 2P 6 6kA D
BC63E2DL-2P010B 2P 10 6kA D
BC63E2DL-2P016B 2P 16 6kA D
BC63E2DL-2P020B 2P 20 6kA D
BC63E2DL-2P025B 2P 25 6kA D
BC63E2DL-2P032B 2P 32 6kA D
BC63E2DL-2P040B 2P 40 6kA D
BC63E2DL-2P050B 2P 50 6kA D
BC63E2DL-2P063B 2P 63 6kA D
BC63E2CL-3P006B 3P 1 6kA C
BC63E2CL-3P001B 3P 2 6kA C
BC63E2CL-3P002B 3P 3 6kA C
BC63E2CL-3P003B 3P 4 6kA C
BC63E2CL-3P004B 3P 5 6kA C
BC63E2CL-3P005B 3P 6 6kA C
BC63E2CL-3P010B 3P 10 6kA C
BC63E2CL-3P016B 3P 16 6kA C
BC63E2CL-3P020B 3P 20 6kA C
BC63E2CL-3P025B 3P 25 6kA C
BC63E2CL-3P032B 3P 32 6kA C
BC63E2CL-3P040B 3P 40 6kA C
BC63E2CL-3P050B 3P 50 6kA C
BC63E2CL-3P063B 3P 63 6kA C
BC63E2DL-3P006B 3P 1 6kA D
BC63E2DL-3P001B 3P 2 6kA D
BC63E2DL-3P002B 3P 3 6kA D
BC63E2DL-3P003B 3P 4 6kA D
BC63E2DL-3P004B 3P 5 6kA D
BC63E2DL-3P005B 3P 6 6kA D
BC63E2DL-3P010B 3P 10 6kA D
BC63E2DL-3P016B 3P 16 6kA D
BC63E2DL-3P020B 3P 20 6kA D
BC63E2DL-3P025B 3P 25 6kA D
BC63E2DL-3P032B 3P 32 6kA D
BC63E2DL-3P040B 3P 40 6kA D
BC63E2DL-3P050B 3P 50 6kA D
BC63E2DL-3P063B 3P 63 6kA D
BC63E2CL-3N001B 3P+N 1 6kA C
BC63E2CL-3N002B 3P+N 2 6kA C
BC63E2CL-3N003B 3P+N 3 6kA C
BC63E2CL-3N004B 3P+N 4 6kA C
BC63E2CL-3N005B 3P+N 5 6kA C
BC63E2CL-3N006B 3P+N 6 6kA C
BC63E2CL-3N010B 3P+N 10 6kA C
BC63E2CL-3N016B 3P+N 16 6kA C
BC63E2CL-3N020B 3P+N 20 6kA C
BC63E2CL-3N025B 3P+N 25 6kA C
BC63E2CL-3N032B 3P+N 32 6kA C
BC63E2CL-3N040B 3P+N 40 6kA C
BC63E2CL-3N050B 3P+N 50 6kA C
BC63E2CL-3N063B 3P+N 63 6kA C
BC63E2DL-3N001B 3P+N 1 6kA D
BC63E2DL-3N002B 3P+N 2 6kA D
BC63E2DL-3N003B 3P+N 3 6kA D
BC63E2DL-3N004B 3P+N 4 6kA D
BC63E2DL-3N005B 3P+N 5 6kA D
BC63E2DL-3N006B 3P+N 6 6kA D
BC63E2DL-3N010B 3P+N 10 6kA D
BC63E2DL-3N016B 3P+N 16 6kA D
BC63E2DL-3N020B 3P+N 20 6kA D
BC63E2DL-3N025B 3P+N 25 6kA D
BC63E2DL-3N032B 3P+N 32 6kA D
BC63E2DL-3N040B 3P+N 40 6kA D
BC63E2DL-3N050B 3P+N 50 6kA D
BC63E2DL-3N063B 3P+N 63 6kA D
BC63E2CL-4P001B 4P 1 6kA C
BC63E2CL-4P002B 4P 2 6kA C
BC63E2CL-4P003B 4P 3 6kA C
BC63E2CL-4P004B 4P 4 6kA C
BC63E2CL-4P005B 4P 5 6kA C
BC63E2CL-4P006B 4P 6 6kA C
BC63E2CL-4P010B 4P 10 6kA C
BC63E2CL-4P016B 4P 16 6kA C
BC63E2CL-4P020B 4P 20 6kA C
BC63E2CL-4P025B 4P 25 6kA C
BC63E2CL-4P032B 4P 32 6kA C
BC63E2CL-4P040B 4P 40 6kA C
BC63E2CL-4P050B 4P 50 6kA C
BC63E2CL-4P063B 4P 63 6kA C
BC63E2DL-4P001B 4P 1 6kA D
BC63E2DL-4P002B 4P 2 6kA D
BC63E2DL-4P003B 4P 3 6kA D
BC63E2DL-4P004B 4P 4 6kA D
BC63E2DL-4P005B 4P 5 6kA D
BC63E2DL-4P006B 4P 6 6kA D
BC63E2DL-4P010B 4P 10 6kA D
BC63E2DL-4P016B 4P 16 6kA D
BC63E2DL-4P020B 4P 20 6kA D
BC63E2DL-4P025B 4P 25 6kA D
BC63E2DL-4P032B 4P 32 6kA D
BC63E2DL-4P040B 4P 40 6kA D
BC63E2DL-4P050B 4P 50 6kA D
BC63E2DL-4P063B 4P 63 6kA D
注:尾缀 B---额定剩余动作电流30mA

7.4 BC32系列小型漏电断路器(相线+中性线)
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) （kA）
BC32E2CLN-1N006 1P+N 6 4.5kA (230V) C
BC32E2CLN-1N010 1P+N 10 4.5kA (230V) C
BC32E2CLN-1N016 1P+N 16 4.5kA (230V) C
BC32E2CLN-1N020 1P+N 20 4.5kA (230V) C
BC32E2CLN-1N025 1P+N 25 4.5kA (230V) C
BC32E2CLN-1N032 1P+N 32 4.5kA (230V) C
注:额定剩余动作电流30mA

7.5  BC125系列小型断路器
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) AC230/400V（kA）
BC125E2CG-1P050 1P 50 10/7.5kA C
BC125E2CG-1P063 1P 63 10/7.5kA C
BC125E2CG-1P080 1P 80 10/7.5kA C
BC125E2CG-1P100 1P 100 10/7.5kA C
BC125E2CG-1P125 1P 125 10/7.5kA C
BC125E2DG-1P050 1P 50 10/7.5kA D
BC125E2DG-1P063 1P 63 10/7.5kA D
BC125E2DG-1P080 1P 80 10/7.5kA D
BC125E2DG-1P100 1P 100 10/7.5kA D
BC125E2CG-2P050 2P 50 10/7.5kA C
BC125E2CG-2P063 2P 63 10/7.5kA C
BC125E2CG-2P080 2P 80 10/7.5kA C
BC125E2CG-2P100 2P 100 10/7.5kA C
BC125E2CG-2P125 2P 125 10/7.5kA C
BC125E2DG-2P050 2P 50 10/7.5kA D
BC125E2DG-2P063 2P 63 10/7.5kA D
BC125E2DG-2P080 2P 80 10/7.5kA D
BC125E2DG-2P100 2P 100 10/7.5kA D
BC125E2CG-3P050 3P 50 10/7.5kA C
BC125E2CG-3P063 3P 63 10/7.5kA C
BC125E2CG-3P080 3P 80 10/7.5kA C
BC125E2CG-3P100 3P 100 10/7.5kA C
BC125E2CG-3P125 3P 125 10/7.5kA C
BC125E2DG-3P050 3P 50 10/7.5kA D
BC125E2DG-3P063 3P 63 10/7.5kA D
BC125E2DG-3P080 3P 80 10/7.5kA D
BC125E2DG-3P100 3P 100 10/7.5kA D
BC125E2CG-4P050 4P 50 10/7.5kA C
BC125E2CG-4P063 4P 63 10/7.5kA C
BC125E2CG-4P080 4P 80 10/7.5kA C
BC125E2CG-4P100 4P 100 10/7.5kA C
BC125E2CG-4P125 4P 125 10/7.5kA C
BC125E2DG-4P050 4P 50 10/7.5kA D
BC125E2DG-4P063 4P 63 10/7.5kA D
BC125E2DG-4P080 4P 80 10/7.5kA D
BC125E2DG-4P100 4P 100 10/7.5kA D

7.6  BC100系列小型断路器(隔离开关)
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) AC230/400V（kA）
BC100E2CS-1P032 1P 32 2000A
BC100E2CS-1P063 1P 63 2000A
BC100E2CS-1P100 1P 100 2000A
BC100E2CS-2P032 2P 32 2000A
BC100E2CS-2P063 2P 63 2000A
BC100E2CS-2P100 2P 100 2000A
BC100E2CS-3P032 3P 32 2000A
BC100E2CS-3P063 3P 63 2000A
BC100E2CS-3P100 3P 100 2000A
BC100E2CS-4P032 4P 32 2000A
BC100E2CS-4P063 4P 63 2000A
BC100E2CS-4P100 4P 100 2000A

7.7  BC100系列小型漏电断路器(相线+中性线)
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) AC230/400V（kA）
BC100E2CL-1N050B 1P+N 50 10/4KA C
BC100E2CL-1N050C 1P+N 50 10/4KA C
BC100E2CL-1N063B 1P+N 63 10/4KA C
BC100E2CL-1N063C 1P+N 63 10/4KA C
BC100E2CL-1N080B 1P+N 80 10/4KA C
BC100E2CL-1N080C 1P+N 80 10/4KA C
BC100E2CL-1N100B 1P+N 100 10/4KA C
BC100E2CL-1N100C 1P+N 100 10/4KA C
BC100E2DL-1N050B 1P+N 50 10/4KA D
BC100E2DL-1N050C 1P+N 50 10/4KA D
BC100E2DL-1N063B 1P+N 63 10/4KA D
BC100E2DL-1N063C 1P+N 63 10/4KA D
BC100E2DL-1N080B 1P+N 80 10/4KA D
BC100E2DL-1N080C 1P+N 80 10/4KA D
BC100E2DL-1N100B 1P+N 100 10/4KA D
BC100E2DL-1N100C 1P+N 100 10/4KA D
BC100E2CL-2P050B 2P 50 20/10kA C
BC100E2CL-2P050C 2P 50 20/10kA C
BC100E2CL-2P063B 2P 63 20/10kA C
BC100E2CL-2P063C 2P 63 20/10kA C
BC100E2CL-2P080B 2P 80 20/10kA C
BC100E2CL-2P080C 2P 80 20/10kA C
BC100E2CL-2P100B 2P 100 20/10kA C
BC100E2CL-2P100C 2P 100 20/10kA C
BC100E2DL-2P050B 2P 50 20/10kA D
BC100E2DL-2P050C 2P 50 20/10kA D
BC100E2DL-2P063B 2P 63 20/10kA D
BC100E2DL-2P063C 2P 63 20/10kA D
BC100E2DL-2P080B 2P 80 20/10kA D
BC100E2DL-2P080C 2P 80 20/10kA D
BC100E2DL-2P100B 2P 100 20/10kA D
BC100E2DL-2P100C 2P 100 20/10kA D
BC100E2CL-3P050B 3P 50 20/10kA C
BC100E2CL-3P050C 3P 50 20/10kA C
BC100E2CL-3P063B 3P 63 20/10kA C
BC100E2CL-3P063C 3P 63 20/10kA C
BC100E2CL-3P080B 3P 80 20/10kA C
BC100E2CL-3P080C 3P 80 20/10kA C
BC100E2CL-3P100B 3P 100 20/10kA C
BC100E2CL-3P100C 3P 100 20/10kA C
BC100E2DL-3P050B 3P 50 20/10kA D
BC100E2DL-3P050C 3P 50 20/10kA D
BC100E2DL-3P063B 3P 63 20/10kA D
BC100E2DL-3P063C 3P 63 20/10kA D
BC100E2DL-3P080B 3P 80 20/10kA D
BC100E2DL-3P080C 3P 80 20/10kA D
BC100E2DL-3P100B 3P 100 20/10kA D
BC100E2DL-3P100C 3P 100 20/10kA D
BC100E2CL-3N050B 3P＋N 50 20/10kA C
BC100E2CL-3N050C 3P＋N 50 20/10kA C
BC100E2CL-3N063B 3P＋N 63 20/10kA C
BC100E2CL-3N063C 3P＋N 63 20/10kA C
BC100E2CL-3N080B 3P＋N 80 20/10kA C
BC100E2CL-3N080C 3P＋N 80 20/10kA C
BC100E2CL-3N100B 3P＋N 100 20/10kA C
BC100E2CL-3N100C 3P＋N 100 20/10kA C
BC100E2DL-3N050B 3P＋N 50 20/10kA D
BC100E2DL-3N050C 3P＋N 50 20/10kA D
BC100E2DL-3N063B 3P＋N 63 20/10kA D
BC100E2DL-3N063C 3P＋N 63 20/10kA D
BC100E2DL-3N080B 3P＋N 80 20/10kA D
BC100E2DL-3N080C 3P＋N 80 20/10kA D
BC100E2DL-3N100B 3P＋N 100 20/10kA D
BC100E2DL-3N100C 3P＋N 100 20/10kA D
BC100E2CL-4P050B 4P 50 20/10kA C
BC100E2CL-4P050C 4P 50 20/10kA C
BC100E2CL-4P063B 4P 63 20/10kA C
BC100E2CL-4P063C 4P 63 20/10kA C
BC100E2CL-4P080B 4P 80 20/10kA C
BC100E2CL-4P080C 4P 80 20/10kA C
BC100E2CL-4P100B 4P 100 20/10kA C
BC100E2CL-4P100C 4P 100 20/10kA C
BC100E2DL-4P050B 4P 50 20/10kA D
BC100E2DL-4P050C 4P 50 20/10kA D
BC100E2DL-4P063B 4P 63 20/10kA D
BC100E2DL-4P063C 4P 63 20/10kA D
BC100E2DL-4P080B 4P 80 20/10kA D
BC100E2DL-4P080C 4P 80 20/10kA D
BC100E2DL-4P100B 4P 100 20/10kA D
BC100E2DL-4P100C 4P 100 20/10kA D
注:尾缀 B---额定剩余动作电流30mA  C---额定剩余动作电流100mA

7.8  附件
型   号 附件名称 附件描述
BC9W1SA2 BC63用辅助接点 侧面安装
BC9W1SC2 BC125用辅助接点 侧面安装
BC9K1SA2 BC63用报警接点 侧面安装
BC9K1SC2 BC125用报警接点 侧面安装
BC9FRA2 BC63用MX+OF 24V DC
BC9FSA2 BC63用MX+OF 48V DC
BC9FKA2 BC63用MX+OF 230VAC
BC9FPA2 BC63用MX+OF 400V DC
BC9FRC2 BC125用MX+OF 24V/48V DC
BC9FKC2 BC125用MX+OF 230V/400V AC

7.MCB小型断路器
7.9  BC63系列小型断路器(10kA)
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) AC230/400V（kA）
BC63H2CG-1P001 1P 1 10kA C
BC63H2CG-1P002 1P 2 10kA C
BC63H2CG-1P003 1P 3 10kA C
BC63H2CG-1P004 1P 4 10kA C
BC63H2CG-1P005 1P 5 10kA C
BC63H2CG-1P006 1P 6 10kA C
BC63H2CG-1P010 1P 10 10kA C
BC63H2CG-1P016 1P 16 10kA C
BC63H2CG-1P020 1P 20 10kA C
BC63H2CG-1P025 1P 25 10kA C
BC63H2CG-1P032 1P 32 10kA C
BC63H2CG-1P040 1P 40 10kA C
BC63H2CG-1P050 1P 50 10kA C
BC63H2CG-1P063 1P 63 10kA C
BC63H2DG-1P001 1P 1 10kA D
BC63H2DG-1P002 1P 2 10kA D
BC63H2DG-1P003 1P 3 10kA D
BC63H2DG-1P004 1P 4 10kA D
BC63H2DG-1P005 1P 5 10kA D
BC63H2DG-1P006 1P 6 10kA D
BC63H2DG-1P010 1P 10 10kA D
BC63H2DG-1P016 1P 16 10kA D
BC63H2DG-1P020 1P 20 10kA D
BC63H2DG-1P025 1P 25 10kA D
BC63H2DG-1P032 1P 32 10kA D
BC63H2DG-1P040 1P 40 10kA D
BC63H2DG-1P050 1P 50 10kA D
BC63H2DG-1P063 1P 63 10kA D
BC63H2CG-2P001 2P 1 10kA C
BC63H2CG-2P002 2P 2 10kA C
BC63H2CG-2P003 2P 3 10kA C
BC63H2CG-2P004 2P 4 10kA C
BC63H2CG-2P005 2P 5 10kA C
BC63H2CG-2P006 2P 6 10kA C
BC63H2CG-2P010 2P 10 10kA C
BC63H2CG-2P016 2P 16 10kA C
BC63H2CG-2P020 2P 20 10kA C
BC63H2CG-2P025 2P 25 10kA C
BC63H2CG-2P032 2P 32 10kA C
BC63H2CG-2P040 2P 40 10kA C
BC63H2CG-2P050 2P 50 10kA C
BC63H2CG-2P063 2P 63 10kA C
BC63H2DG-2P001 2P 1 10kA D
BC63H2DG-2P002 2P 2 10kA D
BC63H2DG-2P003 2P 3 10kA D
BC63H2DG-2P004 2P 4 10kA D
BC63H2DG-2P005 2P 5 10kA D
BC63H2DG-2P006 2P 6 10kA D
BC63H2DG-2P010 2P 10 10kA D
BC63H2DG-2P016 2P 16 10kA D
BC63H2DG-2P020 2P 20 10kA D
BC63H2DG-2P025 2P 25 10kA D
BC63H2DG-2P032 2P 32 10kA D
BC63H2DG-2P040 2P 40 10kA D
BC63H2DG-2P050 2P 50 10kA D
BC63H2DG-2P063 2P 63 10kA D
BC63H2CG-3P001 3P 1 10kA C
BC63H2CG-3P002 3P 2 10kA C
BC63H2CG-3P003 3P 3 10kA C
BC63H2CG-3P004 3P 4 10kA C
BC63H2CG-3P005 3P 5 10kA C
BC63H2CG-3P006 3P 6 10kA C
BC63H2CG-3P010 3P 10 10kA C
BC63H2CG-3P016 3P 16 10kA C
BC63H2CG-3P020 3P 20 10kA C
BC63H2CG-3P025 3P 25 10kA C
BC63H2CG-3P032 3P 32 10kA C
BC63H2CG-3P040 3P 40 10kA C
BC63H2CG-3P050 3P 50 10kA C
BC63H2CG-3P063 3P 63 10kA C
BC63H2DG-3P001 3P 1 10kA D
BC63H2DG-3P002 3P 2 10kA D
BC63H2DG-3P003 3P 3 10kA D
BC63H2DG-3P004 3P 4 10kA D
BC63H2DG-3P005 3P 5 10kA D
BC63H2DG-3P006 3P 6 10kA D
BC63H2DG-3P010 3P 10 10kA D
BC63H2DG-3P016 3P 16 10kA D
BC63H2DG-3P020 3P 20 10kA D
BC63H2DG-3P025 3P 25 10kA D
BC63H2DG-3P032 3P 32 10kA D
BC63H2DG-3P040 3P 40 10kA D
BC63H2DG-3P050 3P 50 10kA D
BC63H2DG-3P063 3P 63 10kA D
BC63H2CG-4P001 4P 1 10kA C
BC63H2CG-4P002 4P 2 10kA C
BC63H2CG-4P003 4P 3 10kA C
BC63H2CG-4P004 4P 4 10kA C
BC63H2CG-4P005 4P 5 10kA C
BC63H2CG-4P006 4P 6 10kA C
BC63H2CG-4P010 4P 10 10kA C
BC63H2CG-4P016 4P 16 10kA C
BC63H2CG-4P020 4P 20 10kA C
BC63H2CG-4P025 4P 25 10kA C
BC63H2CG-4P032 4P 32 10kA C
BC63H2CG-4P040 4P 40 10kA C
BC63H2CG-4P050 4P 50 10kA C
BC63H2CG-4P063 4P 63 10kA C
BC63H2DG-4P001 4P 1 10kA D
BC63H2DG-4P002 4P 2 10kA D
BC63H2DG-4P003 4P 3 10kA D
BC63H2DG-4P004 4P 4 10kA D
BC63H2DG-4P005 4P 5 10kA D
BC63H2DG-4P006 4P 6 10kA D
BC63H2DG-4P010 4P 10 10kA D
BC63H2DG-4P016 4P 16 10kA D
BC63H2DG-4P020 4P 20 10kA D
BC63H2DG-4P025 4P 25 10kA D
BC63H2DG-4P032 4P 32 10kA D
BC63H2DG-4P040 4P 40 10kA D
BC63H2DG-4P050 4P 50 10kA D
BC63H2DG-4P063 4P 63 10kA D

7.10  BC63系列小型漏电断路器(相线+中性线)(10kA)
型   号 极数 額定电流 额定分断容量 动作特性
    ( A ) AC230/400V（kA）
BC63H2CL-1N001B 1P+N 1 10kA C
BC63H2CL-1N002B 1P+N 2 10kA C
BC63H2CL-1N003B 1P+N 3 10kA C
BC63H2CL-1N004B 1P+N 4 10kA C
BC63H2CL-1N006B 1P+N 6 10kA C
BC63H2CL-1N010B 1P+N 10 10kA C
BC63H2CL-1N016B 1P+N 16 10kA C
BC63H2CL-1N020B 1P+N 20 10kA C
BC63H2CL-1N025B 1P+N 25 10kA C
BC63H2CL-1N032B 1P+N 32 10kA C
BC63H2CL-1N040B 1P+N 40 10kA C
BC63H2CL-1N050B 1P+N 50 10kA C
BC63H2CL-1N063B 1P+N 63 10kA C
BC63H2DL-1N001B 1P+N 1 10kA D
BC63H2DL-1N002B 1P+N 2 10kA D
BC63H2DL-1N003B 1P+N 3 10kA D
BC63H2DL-1N004B 1P+N 4 10kA D
BC63H2DL-1N006B 1P+N 6 10kA D
BC63H2DL-1N010B 1P+N 10 10kA D
BC63H2DL-1N016B 1P+N 16 10kA D
BC63H2DL-1N020B 1P+N 20 10kA D
BC63H2DL-1N025B 1P+N 25 10kA D
BC63H2DL-1N032B 1P+N 32 10kA D
BC63H2DL-1N040B 1P+N 40 10kA D
BC63H2DL-1N050B 1P+N 50 10kA D
BC63H2DL-1N063B 1P+N 63 10kA D
BC63H2CL-2P001B 2P 1 10kA C
BC63H2CL-2P002B 2P 2 10kA C
BC63H2CL-2P003B 2P 3 10kA C
BC63H2CL-2P004B 2P 4 10kA C
BC63H2CL-2P006B 2P 6 10kA C
BC63H2CL-2P010B 2P 10 10kA C
BC63H2CL-2P016B 2P 16 10kA C
BC63H2CL-2P020B 2P 20 10kA C
BC63H2CL-2P025B 2P 25 10kA C
BC63H2CL-2P032B 2P 32 10kA C
BC63H2CL-2P040B 2P 40 10kA C
BC63H2CL-2P050B 2P 50 10kA C
BC63H2CL-2P063B 2P 63 10kA C
BC63H2DL-2P001B 2P 1 10kA D
BC63H2DL-2P002B 2P 2 10kA D
BC63H2DL-2P003B 2P 3 10kA D
BC63H2DL-2P004B 2P 4 10kA D
BC63H2DL-2P006B 2P 6 10kA D
BC63H2DL-2P010B 2P 10 10kA D
BC63H2DL-2P016B 2P 16 10kA D
BC63H2DL-2P020B 2P 20 10kA D
BC63H2DL-2P025B 2P 25 10kA D
BC63H2DL-2P032B 2P 32 10kA D
BC63H2DL-2P040B 2P 40 10kA D
BC63H2DL-2P050B 2P 50 10kA D
BC63H2DL-2P063B 2P 63 10kA D
BC63H2CL-3P006B 3P 1 10kA C
BC63H2CL-3P001B 3P 2 10kA C
BC63H2CL-3P002B 3P 3 10kA C
BC63H2CL-3P003B 3P 4 10kA C
BC63H2CL-3P005B 3P 6 10kA C
BC63H2CL-3P010B 3P 10 10kA C
BC63H2CL-3P016B 3P 16 10kA C
BC63H2CL-3P020B 3P 20 10kA C
BC63H2CL-3P025B 3P 25 10kA C
BC63H2CL-3P032B 3P 32 10kA C
BC63H2CL-3P040B 3P 40 10kA C
BC63H2CL-3P050B 3P 50 10kA C
BC63H2CL-3P063B 3P 63 10kA C
BC63H2DL-3P006B 3P 1 10kA D
BC63H2DL-3P001B 3P 2 10kA D
BC63H2DL-3P002B 3P 3 10kA D
BC63H2DL-3P003B 3P 4 10kA D
BC63H2DL-3P005B 3P 6 10kA D
BC63H2DL-3P010B 3P 10 10kA D
BC63H2DL-3P016B 3P 16 10kA D
BC63H2DL-3P020B 3P 20 10kA D
BC63H2DL-3P025B 3P 25 10kA D
BC63H2DL-3P032B 3P 32 10kA D
BC63H2DL-3P040B 3P 40 10kA D
BC63H2DL-3P050B 3P 50 10kA D
BC63H2DL-3P063B 3P 63 10kA D
BC63H2CL-3N001B 3P+N 1 10kA C
BC63H2CL-3N002B 3P+N 2 10kA C
BC63H2CL-3N003B 3P+N 3 10kA C
BC63H2CL-3N004B 3P+N 4 10kA C
BC63H2CL-3N006B 3P+N 6 10kA C
BC63H2CL-3N010B 3P+N 10 10kA C
BC63H2CL-3N016B 3P+N 16 10kA C
BC63H2CL-3N020B 3P+N 20 10kA C
BC63H2CL-3N025B 3P+N 25 10kA C
BC63H2CL-3N032B 3P+N 32 10kA C
BC63H2CL-3N040B 3P+N 40 10kA C
BC63H2CL-3N050B 3P+N 50 10kA C
BC63H2CL-3N063B 3P+N 63 10kA C
BC63H2DL-3N001B 3P+N 1 10kA D
BC63H2DL-3N002B 3P+N 2 10kA D
BC63H2DL-3N003B 3P+N 3 10kA D
BC63H2DL-3N004B 3P+N 4 10kA D
BC63H2DL-3N006B 3P+N 6 10kA D
BC63H2DL-3N010B 3P+N 10 10kA D
BC63H2DL-3N016B 3P+N 16 10kA D
BC63H2DL-3N020B 3P+N 20 10kA D
BC63H2DL-3N025B 3P+N 25 10kA D
BC63H2DL-3N032B 3P+N 32 10kA D
BC63H2DL-3N040B 3P+N 40 10kA D
BC63H2DL-3N050B 3P+N 50 10kA D
BC63H2DL-3N063B 3P+N 63 10kA D
BC63H2CL-4P001B 4P 1 10kA C
BC63H2CL-4P002B 4P 2 10kA C
BC63H2CL-4P003B 4P 3 10kA C
BC63H2CL-4P004B 4P 4 10kA C
BC63H2CL-4P006B 4P 6 10kA C
BC63H2CL-4P010B 4P 10 10kA C
BC63H2CL-4P016B 4P 16 10kA C
BC63H2CL-4P020B 4P 20 10kA C
BC63H2CL-4P025B 4P 25 10kA C
BC63H2CL-4P032B 4P 32 10kA C
BC63H2CL-4P040B 4P 40 10kA C
BC63H2CL-4P050B 4P 50 10kA C
BC63H2CL-4P063B 4P 63 10kA C
BC63H2DL-4P001B 4P 1 10kA D
BC63H2DL-4P002B 4P 2 10kA D
BC63H2DL-4P003B 4P 3 10kA D
BC63H2DL-4P004B 4P 4 10kA D
BC63H2DL-4P006B 4P 6 10kA D
BC63H2DL-4P010B 4P 10 10kA D
BC63H2DL-4P016B 4P 16 10kA D
BC63H2DL-4P020B 4P 20 10kA D
BC63H2DL-4P025B 4P 25 10kA D
BC63H2DL-4P032B 4P 32 10kA D
BC63H2DL-4P040B 4P 40 10kA D
BC63H2DL-4P050B 4P 50 10kA D
BC63H2DL-4P063B 4P 63 10kA D
注:尾缀 B---额定剩余动作电流30mA

7.11  附件(10kA)
型   号 附件名称 附件描述
BC9W1SH2 BC63用辅助接点 侧面安装
BC9K1SH2 BC63用报警接点 侧面安装
BC9FRH2 BC63用MX+OF 24V DC
BC9FSH2 BC63用MX+OF 48V DC
BC9FKH2 BC63用MX+OF 230VAC
BC9FPH2 BC63用MX+OF 400V DC

相关产品

联系方式
电话：15921693880 传真：021-54411930
邮箱：sh@hanyouauto.com
QQ：931696484
地址：上海市闵行区中春路7001号1号楼309室

版权所有：上海韩有电子科技有限公司网站

备案号：沪ICP备2021006693号-1
